TRELLEBORG特瑞堡密封系統成立于1952年，已收購德國BUSAK+SHAMBAN。

BUSAK+SHAMBAN(B+S)格萊圈TG5201250-Z80V產品參數

BUSAK+SHAMBAN(B+S)格萊圈TG系列產品介紹

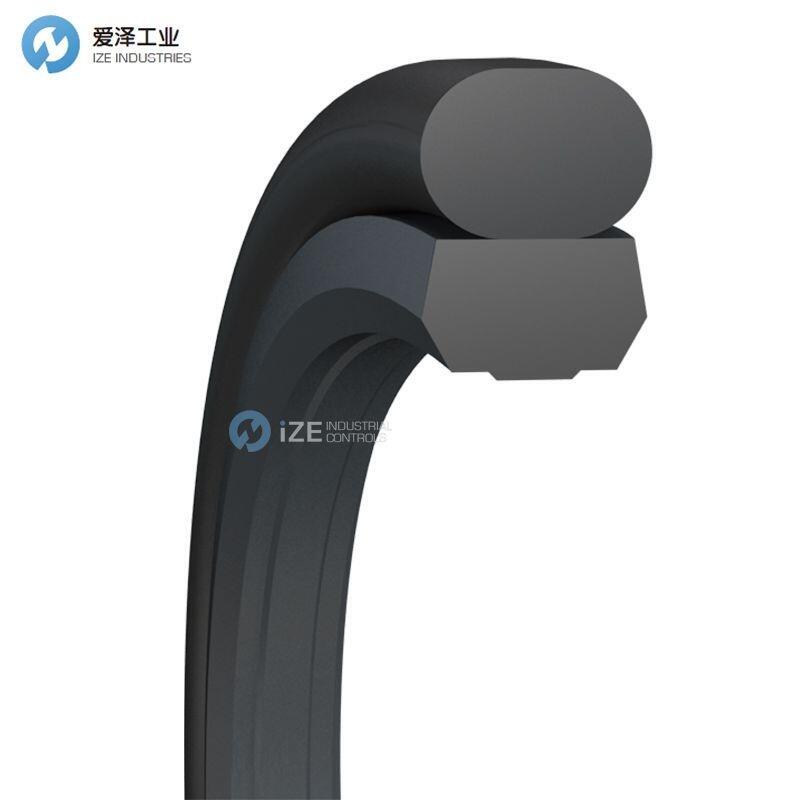

The Zurcon Roto Glyd Ring S is used to seal shafts, axles, bores, rotary transmission leadthroughs, journals, swivels etc. with rotary or oscillating movement.

The seal is double-acting and can be exposed to pressure from one, or from both sides.

Application examples

- For sealing shafts, axels and rotary transmission leadthroughs with slow rotary or oscillating movement

- Can also be used to seal rotary joints at increased rotating speeds even when exposed to pressure, e.g. rotary indexing tables

- Rotary connections with swivel movement, even when exposed to high pressure, e.g. damping units

Advantages

- Available for shaft and bore sealing applications

- Low friction

- Stick-slip-free starting, no sticking

- High abrasion resistance and dimensional stability

- Simple groove design, small groove dimensions

- Available in material Z51 and Z52 for all shaft sizes up to 2200 mm diameter and for all bore sizes up to 2300 mm

- Available in material Z80 for all shaft sizes up to 2600 mm diameter and for all bore sizes up to 2700 mm

Zurcon Roto Glyd Ring S 用于密封旋轉或擺動運動的軸、軸、孔、旋轉傳動裝置、軸頸、轉環等。

密封件是雙作用的，可以承受來自一側或兩側的壓力。

應用實例

- 用于密封慢速旋轉或擺動運動的軸、軸和旋轉傳動裝置

- 也可用于以更高的轉速密封旋轉接頭，即使在壓力下，例如旋轉分度臺

- 具有旋轉運動的旋轉連接，即使暴露在高壓下，例如阻尼單元

好處

- 可用于軸和孔密封應用

- 低摩擦

- 無粘滑啟動，不粘連

- 高耐磨性和尺寸穩定性

- 簡單的凹槽設計，小凹槽尺寸

- 提供Z51和Z52材料，適用于直徑2200毫米的所有軸尺寸和2300毫米的所有孔尺寸

- 可提供 Z80 材料，適用于直徑為2600毫米的所有軸尺寸和為2700毫米的所有孔尺寸

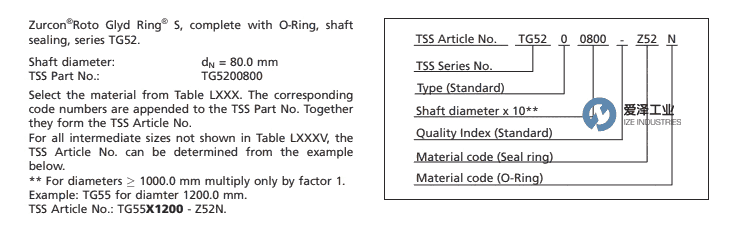

選型

BUSAK+SHAMBAN(B+S)格萊圈TG系列其他常見型號：

BUSAK+SHAMBAN TG5201250-Z51N

BUSAK+SHAMBAN TG5201250-Z51T

BUSAK+SHAMBAN TG5201250-Z52N

BUSAK+SHAMBAN TG5201250-Z52T

BUSAK+SHAMBAN TG5201250-Z80N

BUSAK+SHAMBAN TG5201250-Z80T

BUSAK+SHAMBAN TG5201250-Z80V

BUSAK+SHAMBAN(B+S) Seal NEW + ORIGINAL+ ONE YEAR WARRANTY
