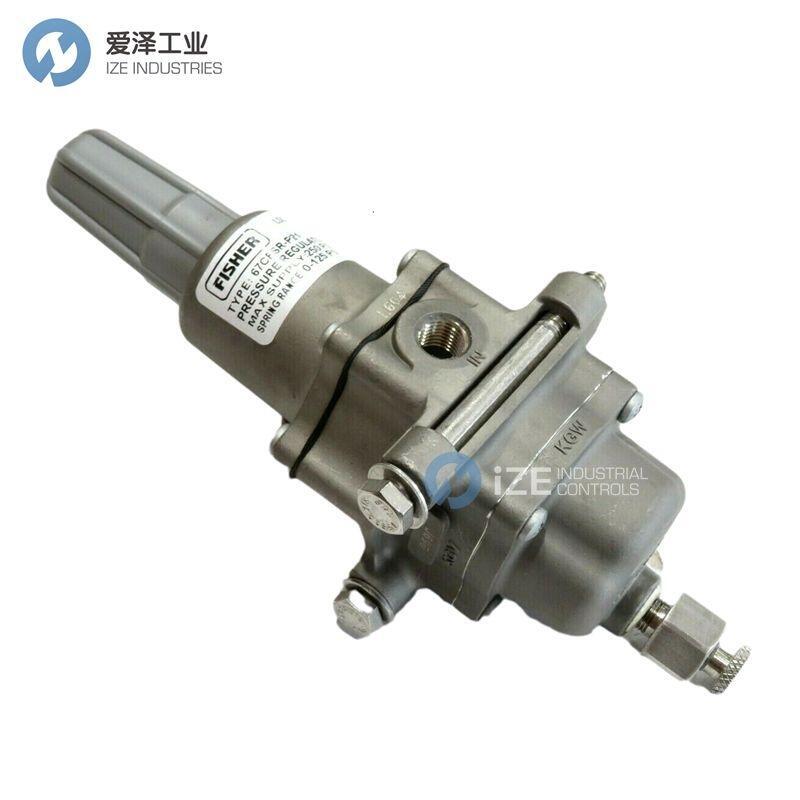

FISHER調壓閥67C系列產品介紹

FISHER調壓閥67C系列介紹

67C系列調節器通常用于向氣動和電動氣動控制器及其他儀表提供持續控制的減壓。這些直接操作的調節器適用于大多數空氣或氣體應用。其他應用包括為氣動卡盤、空氣噴射器和噴減壓。

特征

?緊湊型67C系列調節器采用緊湊、輕巧的包裝，具有出色的性能。

?面板安裝面板安裝結構包括帶1/4 NPT通風孔的彈簧盒、手輪調整螺釘和安裝螺母。

?儀表供氣調節器67CF、67CFR、67CFS和67CFSR型為各種氣動和電動氣動儀表提供清潔的空氣供應。

?數字儀表電源調節器，用于滿足數字儀表的精度、重復性和滯后要求。

?先導供給調節器通過降低入口壓力波動引起的入口靈敏度，提高了兩個通道控制調節器的精度。

?酸性氣體服務能力符合NACE MR0175和MR0103標準。

?可選不銹鋼結構67CS、67CSR、67CFS和67CFSR具有高耐腐蝕性，尤其適用于海上應用。

?全可用容量Fisher®調節器經過實驗室測試。100%的已發布容量都可以放心使用。

?內部泄壓67CR、67CSR、67CFR和67CFSR型有一個內部泄壓閥，帶有軟閥座，用于可靠關閉，無明顯泄漏。建議使用這些調節器來保存工廠空氣。

?智能出血?-當入口壓力降到出口壓力以下時，開啟以排出下游壓力。

推薦用于終端服務。

?整體式過濾器67CF、67CFR、67CFS和67CFSR型有一個整體式過濾器，確保下游空氣供應干凈。

?易于維護-無需使用特殊工具進行維護，所有維護都可以在調節器在線的情況下進行。濾芯易于更換。一體式閥塞閥芯便于檢查和更換。

?堅固的結構67C系列調節器的設計使用壽命更長，維護要求。

?用于壓力計或其他用途的第二出口閥體側出口。

?粉末涂料67C、67CR、67CF和67CFR是粉末涂料涂層，具有抗沖擊、耐磨和耐腐蝕性。不銹鋼調節器（67CS、67CSR、67CFS和67CFSR型）不涂漆。

?耐腐蝕緊固件螺栓和調節螺釘采用雙鉻酸鋅處理，以增強耐腐蝕性?？蛇x不銹鋼螺栓和調整螺釘也可供選擇。

The 67C Series regulators are typically used to provide constantly controlled, reduced pressures to pneumatic and electro-pneumatic controllers and other instruments. These direct-operated regulators are suitable for most air or gas applications. Other applications include providing reduced pressures to air chucks, air jets, and spray guns.

Features

? Compact—The 67C Series regulators are engineered for outstanding performance in a compact,lightweight package.

? Panel Mounting—Panel mount construction includes spring case with 1/4 NPT vent, handwheel adjusting screw, and mounting nut.

? Instrument Supply Regulator—The Types 67CF,67CFR, 67CFS, and 67CFSR provide a clean air supply to a variety of pneumatic and electro-pneumatic instrumentation.

? Digital Instrument Supply Regulator—Designed to meet the accuracy, repeatability, and hysteresis demands of digital instrumentation.

? Pilot Supply Regulator—Improves the accuracy of two-path control regulators by reducing inlet sensitivity caused by fluctuating inlet pressures.

? Sour Gas Service Capability—NACE MR0175 and MR0103 compliant construction available.

? Optional Stainless Steel Construction—The Types 67CS, 67CSR, 67CFS, and 67CFSR provide high resistance to corrosion, which is especially beneficial for offshore applications.

? Full Usable Capacity—Fisher® regulators are laboratory tested. 100% of the published capacities can be used with confidence.

? Internal Relief—The Types 67CR, 67CSR, 67CFR, and 67CFSR have an internal relief valve with a soft seat for reliable shutoff with no discernible leakage. These regulators are recommended for conserving plant air.

? Smart Bleed?—Opens to exhaust downstream pressure when inlet pressure drops below outlet pressure.

Recommended for dead-end service.

? Integral Filter—The Types 67CF, 67CFR, 67CFS,and 67CFSR have an integral filter ensuring clean downstream air supply.

? Ease of Maintenance—No special tools required to perform maintenance, and all maintenance can be performed with the regulator in the line. Filter elements are easily replaced. The one-piece valve plug cartridge allows easy inspection and replacement.

? Rugged Construction—The 67C Series regulators are engineered for longer service life with minimal maintenance requirements.

? Second Outlet—Body side outlet for pressure gauge or other uses.

? Powder Paint Coating—Types 67C, 67CR, 67CF,and 67CFR are powder paint coated, offering impact,abrasion, and corrosion resistance. Stainless steel regulators (Types 67CS, 67CSR, 67CFS, and 67CFSR) are not painted.

? Corrosion Resistant Fasteners—Bolting and adjusting screw are double zinc-chromated for enhanced corrosion resistance. Optional stainless steel bolting and adjusting screw are also available.

FISHER調壓閥67C系列其他常見型號：

FISHER FS-67CFR-362

FISHER PF-67CFR-P265

FISHER FS-67CFR-600

FISHER 67CF-1663-38656

FISHER FS-67CFR-237

FISHER 67CF-1663-38512

FISHER FS-67CFR-239

FISHER 67CFR-1663-38550

FISHER FS-67CFR-601

FISHER 67CF-1663-38672

FISHER FS67CFR-226

FISHER 67CF-1663-38539

FISHER FS67CFR-225

FISHER 67CF-1663-38501

FISHER valve NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于FISHER調壓閥FS-67CFSR-600的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for FISHER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

聯系方式：

愛澤工業專業代理，特價銷售，認真，細心，高效率服務！

聯系電話：021-31006702 021-35350722

聯系傳真：021-35350711

手機：189 1750 1433

郵箱：sales@ize-industries.com

公司網址：www.ize-industries.com

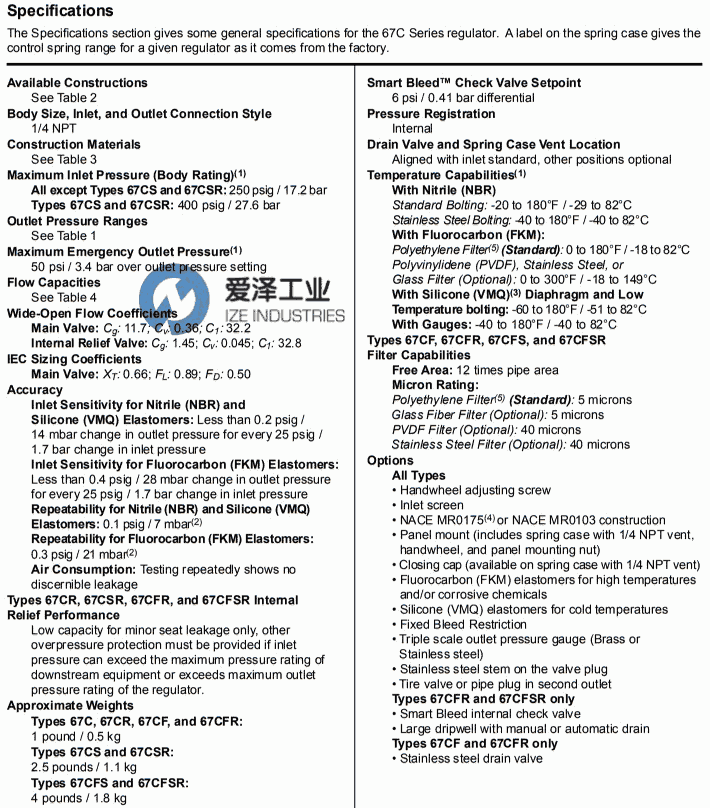

FISHER調壓閥67C系列FS-67CFSR-600產品參數
