FW MURPHY為油氣生產和天然氣壓縮市場提供廣泛的儀表和控制解決方案。自75年前成立以來，主營產品有控制器，面板系統及配件，量規，液位設備和感測器等。

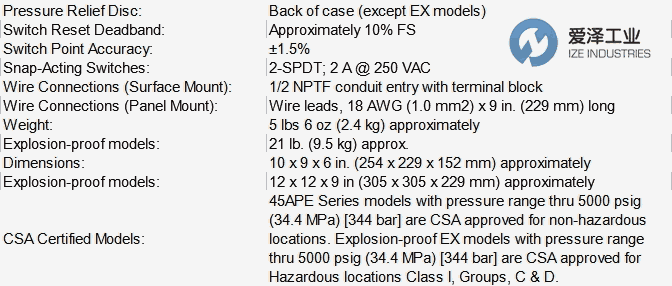

FW MURPHY壓力表45APE系列技術參數

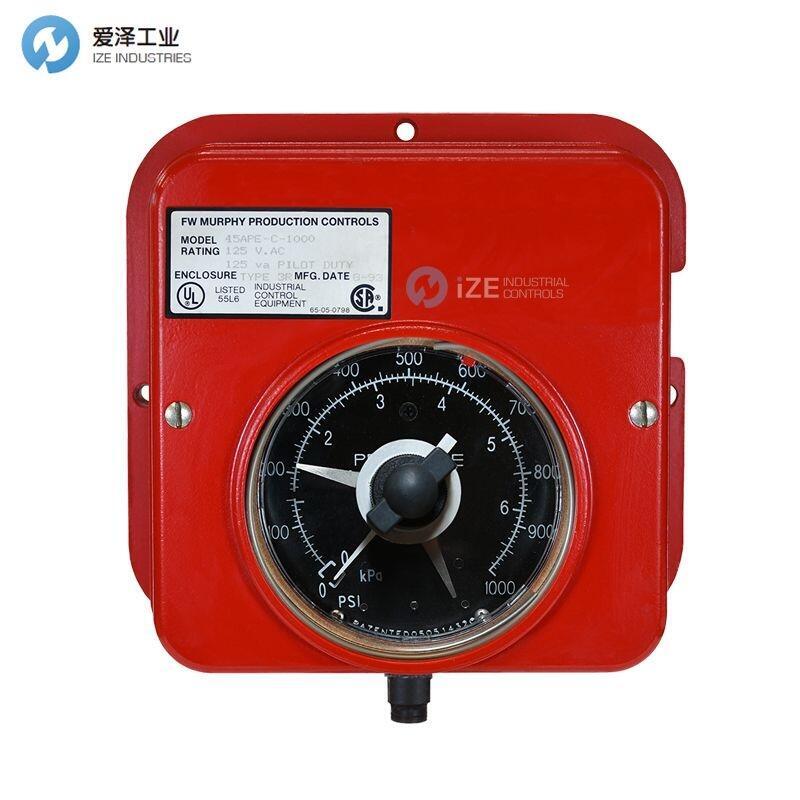

FW MURPHY壓力表45APE系列介紹

45APE系列壓力表儀器是用于壓力指示的機械壓力表。它包括兩個可調式SPDT開關。這些快動開關可用于啟動和停止，觸發警報和關閉設備。范圍從30 psi（207 kPa）[2.06 bar]到5,000 psi（34.48 MPa）[344.73 bar]。

45APE系列使用帶有不銹鋼雙扇齒輪傳動機構的波登管感應單元。當向波登管施加壓力時，每個扇區都驅動單獨的指針。指示指針（可見指針）顯示實際壓力讀數，包括低和高跳閘點的下方和上方。高低跳變點可在量規前透鏡上獨立調節。開關操作員的指針（位于表盤后面）已校準為跟隨指示指針。高低跳閘點指示器會鎖住開關操作員的指針。在空轉的原理下，當壓力降低或升高時，相應的速動開關將跳閘。

45APE系列型號廣泛用于需要壓力指示和C型低壓和高壓開關的應用中。

The 45APE Series gage instrument is a mechanical gage for pressure indication. It includes two adjustable SPDT switches. These snap-acting switches can be used for start and stop, to trip alarms and to shut down equipment. Ranges are available from 30 psi (207 kPa) [2.06 bar] thru 5,000 psi (34.48 MPa) [344.73 bar].

The 45APE Series utilizes a bourdon tube sensing unit with a stainless steel dual-sector geared movement. Each of the sectors drives separate pointers when pressure is applied to the bourdon tube. The indicating pointer (visible pointer) shows actual pressure reading, including below and beyond the low and high trip points. The low and high trip points are adjustable independently on the gage front lens. The switch operator pointer (behind the dial) is calibrated to follow the indicating pointer. The low and high trip point indicators arrest the switch operator pointer. As pressure decreases or increases through the principal of lost motion, the respective snapswitch is tripped.

The 45APE Series models are widely used in applications requiring pressure indication and Form C low and high pressure switches.

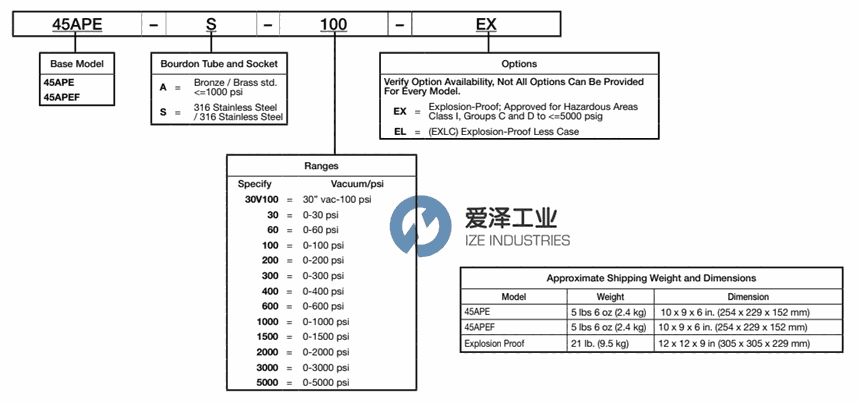

FW MURPHY壓力表45APE系列選型

FW MURPHY壓力表45APE系列其他常用型號：

FW MURPHY 45APE-S-30V100

FW MURPHY 45APE-S-100-EX

FW MURPHY 45APE-S-30

FW MURPHY 45APE-S-60

FW MURPHY 45APE-S-200

FW MURPHY 45APE-S-300

FW MURPHY 45APE-S-400

FW MURPHY 45APE-S-600

FW MURPHY 45APE-S-1000

FW MURPHY 45APE-S-1500

FW MURPHY 45APE-S-2000

FW MURPHY 45APE-S-3000

FW MURPHY 45APE-S-5000

FW MURPHY Pressure gauge NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于FW MURPHY壓力表45APE-S-30V100的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for FW MURPHY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

聯系方式：

愛澤工業專業代理，特價銷售，認真，細心，高效率服務！

聯系電話：021-31006702 021-35350722

聯系傳真：021-35350711

手機：189 1750 1433

郵箱：sales@ize-industries.com

公司網址：www.ize-industries.com

FW MURPHY壓力表45APE系列45APE-S-30V100介紹及選型
