MicroE產品采用PurePrecision和VeraPath技術構建而成。MicroE品牌的微型精密光學光柵編碼器有多種外形和安裝選項，輔以增量和絕對接口，有多種旋轉和線性刻度表可供選擇。

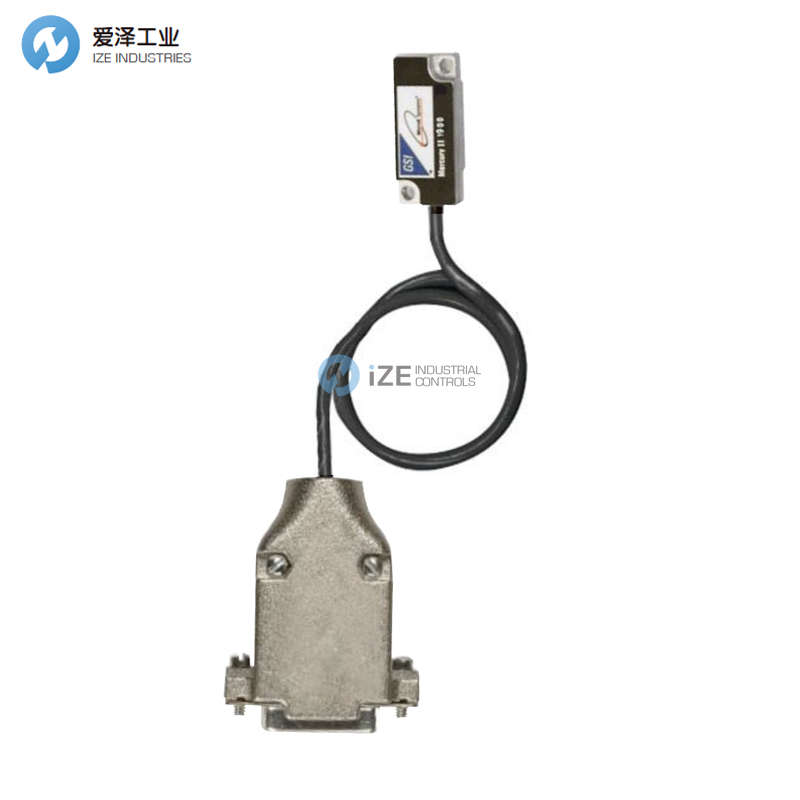

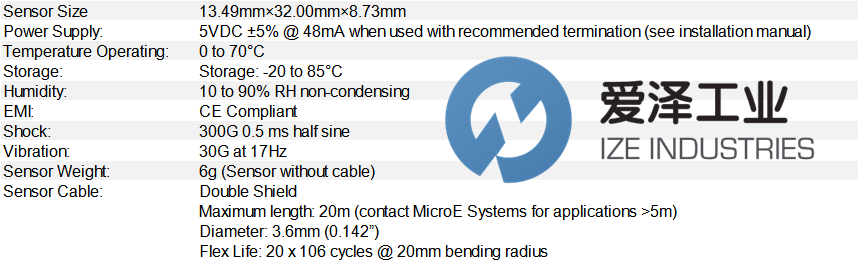

MicroE編碼器MercuryII 1900系列技術參數

MicroE編碼器MercuryII1900系列介紹

MII 1900是建立在經過現場驗證的Mercury技術平臺上的。Mercury II以更小、更智能、更快而聞名，它建立在最初的水星系列基礎上，增加了性能、多功能性、堅固性和易用性。

? 小型，低質量的傳感器與超低的z高度適合于緊湊的運動系統

? 低噪聲，高精度輸出信號-分辨率可達1.2nm；遠程精度可達±1μm(線性玻璃尺度可達130mm長)

? 高速運行-7.2m/s

? 多功能-一個傳感器工作與激光膠帶或線性玻璃秤

? 廣泛的傳感器對準公差和對準工具的紅/黃/綠設置LED使傳感器快速對準

The Mercury II? 1900 is built on the field-proven Mercury? technology platform. Known for being smaller, smarter and faster, Mercury II builds on the original Mercury series and adds increased performance, versatility, robustness, and ease-of-use.

? Small, low-mass sensor with ultra low Z-height fits in compact motion systems

? Low noise, high accuracy output signals - resolution up to 1.2nm;long-range accuracy up to ± 1μm (linear glass scales up to 130mm long)

? High-speed operation - 7.2m/s

? Versatility - one sensor works with laser tape or linear glass scales

? Broad sensor alignment tolerances and the Alignment Tool’s red/yellow/green setup LEDs make sensor alignment fast

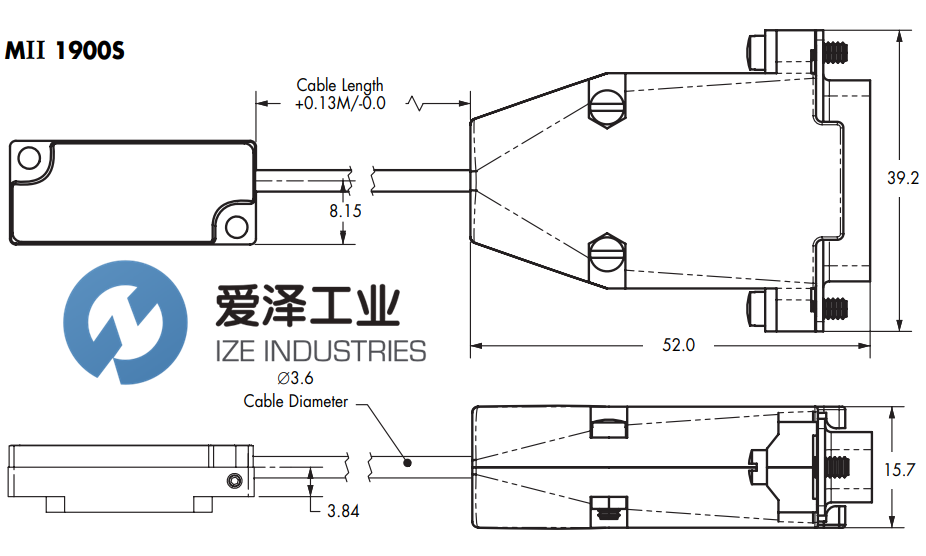

MicroE編碼器MercuryII1900S技術尺寸

MicroE編碼器MII 1900S/系列其他常用型號：

MICROE MII1910S

MICROE MII1930S

MICROE MII1950S

MICROE MII1900S

MicroE Encoders NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于MicroE編碼器MercuryII1900S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for MicroE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

MicroE編碼器MercuryII 1900系列MercuryII1900S技術參數及尺寸
