ETTUS RESEARCH放大器USRP B200-MINI系列技術參數

ETTUS RESEARCH放大器USRP B200-MINI系列介紹

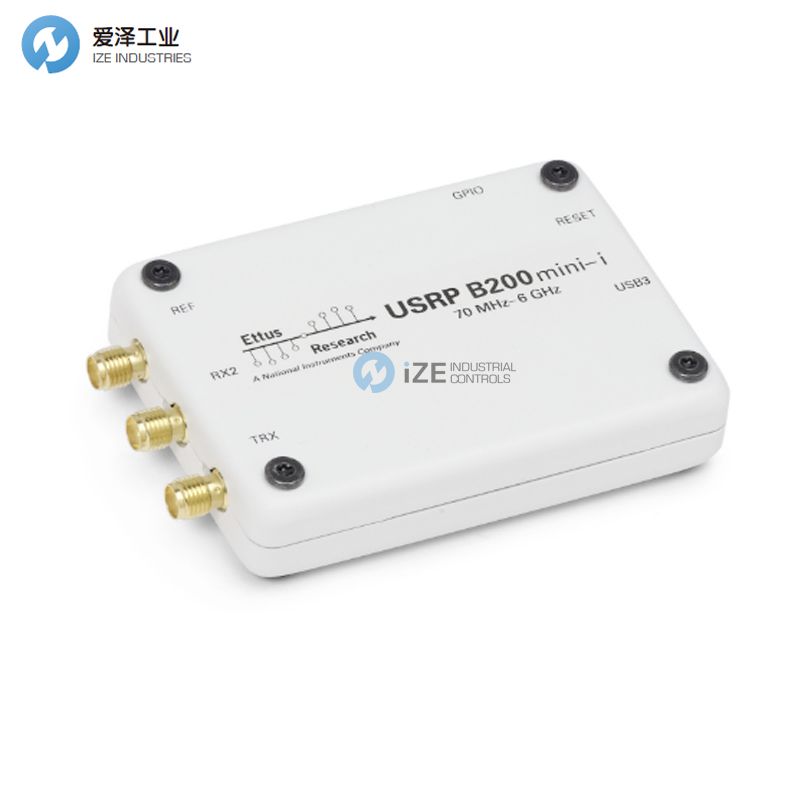

The USRP? B200mini-i delivers a 1×1 SDR/cognitive radio in the size of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable, industrial-grade Xilinx Spartan-6 XC6SLX75 FPGA, this flexible and compact platform is ideal for both hobbyist and OEM applications. The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandb. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The USRP B200mini-i also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal. The USRP Hardware Driver? (UHD) software API supports all USRP products and enables users to efficiently develop applications then seamlessly transition designs between platforms as requirements expand.

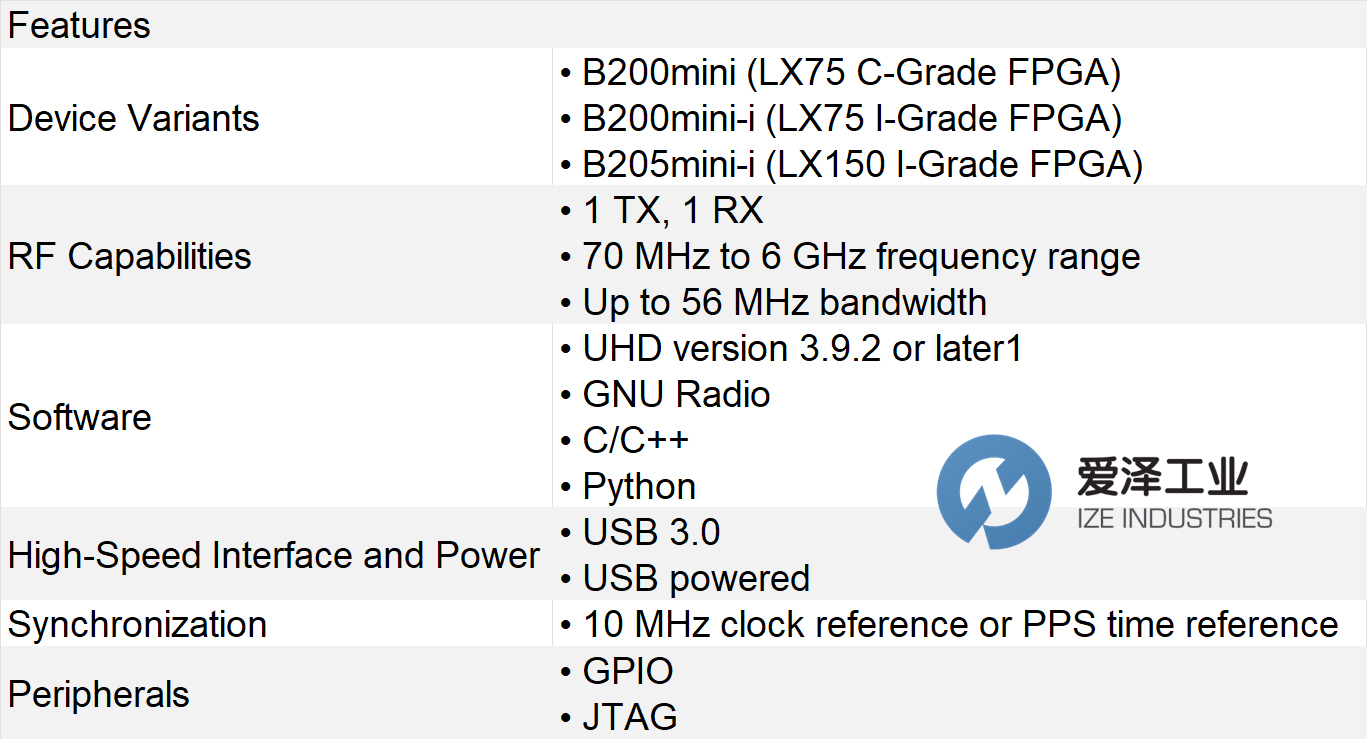

Features

Wide frequency range: 70 MHz – 6 GHz

Up to 56 MHz of instantaneous bandb

Full duplex operation

User-programmable, industrial-grade Xilinx Spartan-6 XC6SLX75 FPGA

Fast and convenient bus-powered USB 3.0 connectivity

Synchronization with 10 MHz clock reference or PPS time reference

GPIO and JTAG for control and debug capabilities

Full aluminum enclosure

83.3 x 50.8 x 8.4 mm form factor

USRP Hardware Driver? (UHD) open-source software API version 3.9.0 or later

GNU Radio support maintained by Ettus Research? through GR-UHD, an interface to UHD distributed by GNU Radio

USRP B200mini-i提供名片大小的1×1 SDR/認知無線電。憑借70 MHz至6 GHz的寬頻率范圍和用戶可編程的工業級 Xilinx Spartan-6 XC6SLX75 FPGA，這個靈活緊湊的平臺非常適合業余愛好者和OEM應用。RF前端使用具有56 MHz瞬時帶寬的Analog Devices AD9364 RFIC收發器。該板由高速 USB 3.0 連接總線供電，用于將數據流式傳輸到主機。 USRP B200mini-i還包括用于GPIO、JTAG以及與10 MHz時鐘參考或 PPS 時間參考輸入信號同步的連接器。USRP Hardware Driver (UHD) 軟件 API 支持所有USRP產品，使用戶能夠高效地開發應用程序，然后隨著需求的擴展在平臺之間無縫轉換設計。

特征

寬頻率范圍：70 MHz – 6 GHz

高達 56 MHz 的瞬時帶寬

全雙工操作

用戶可編程的工業級 Xilinx Spartan-6 XC6SLX75 FPGA

快速便捷的總線供電 USB 3.0 連接

與 10 MHz 時鐘參考或 PPS 時間參考同步

用于控制和調試功能的 GPIO 和 JTAG

全鋁外殼

83.3 x 50.8 x 8.4 毫米外形尺寸

USRP Hardware Driver? (UHD) 開源軟件 API 版本 3.9.0 或更高版本

Ettus Research? 通過 GR-UHD 維護 GNU Radio 支持，GR-UHD 是 GNU Radio 分發的 UHD 接口
