PORTESCAP成立于瑞士，已成為微型電機和精密運動控制解決方案領域的優質供應商。從醫療設備到可以挽救和改善生命的各種工業應用，PORTESCAP提供微型電機計劃滿足各種終端市場的運動需求。PORTESCAP通過廣泛的創新產品技術為客戶提供服務，包括無刷直流，有刷直流，罐式堆疊電機，盤式磁電機和步進線性制動器以優化應用性能。

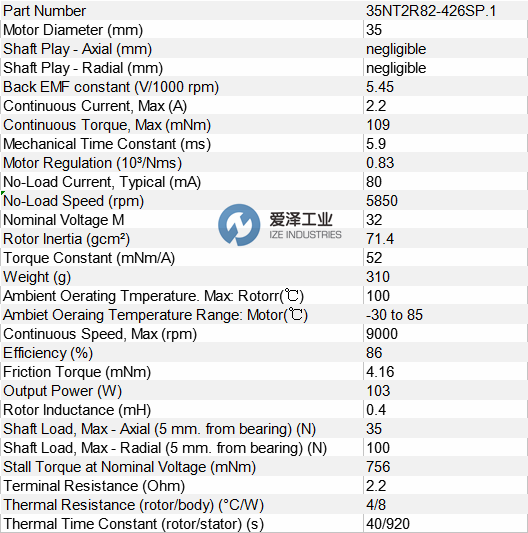

PORTESCAP電機35NT2R82-426SP.1技術規格
|
Part Number |
35NT2R82-426SP.1 |
|
Motor Diameter (mm) |
35 |
|
Shaft Play - Axial (mm) |
negligible |
|
Shaft Play - Radial (mm) |
negligible |
|
Back EMF constant (V/1000 rpm) |
5.45 |
|
Continuous Current, Max (A) |
2.2 |
|
Continuous Torque, Max (mNm) |
109 |
|
Mechanical Time Constant (ms) |
5.9 |
|
Motor Regulation (103/Nms) |
0.83 |
|
No-Load Current, Typical (mA) |
80 |
|
No-Load Speed (rpm) |
5850 |
|
Nominal Voltage M |
32 |
|
Rotor Inertia (gcm2) |
71.4 |
|
Torque Constant (mNm/A) |
52 |
|
Weight (g) |
310 |
|
Ambient Oerating Tmperature. Max: Rotorr(℃) |
100 |
|
Ambiet Oeraing Temperature Range: Motor(℃) |
-30 to 85 |
|
Continuous Speed, Max (rpm) |
9000 |
|
Efficiency (%) |
86 |
|
Friction Torque (mNm) |
4.16 |
|
Output Power (W) |
103 |
|
Rotor Inductance (mH) |
0.4 |
|
Shaft Load, Max - Axial (5 mm. from bearing) (N) |
35 |
|
Shaft Load, Max - Radial (5 mm. from bearing) (N) |
100 |
|
Stall Torque at Nominal Voltage (mNm) |
756 |
|
Terminal Resistance (Ohm) |
2.2 |
|
Thermal Resistance (rotor/body) (°C/W) |
4/8 |
|
Thermal Time Constant (rotor/stator) (s) |
40/920 |
PORTESCAP電機35NT2R82系列介紹
35NT2R82電刷直流電動機提供高功率密度，并結合了石墨/銅換向，可實現高加速，并延長電刷壽命。 它可以連續執行高達150 mNm的工作，效率高達85％。
The 35NT2R82 brush DC motor offers high power density combined with graphite/copper commutation to achieve high acceleration with long brush lifetime. It can perform up to 150 mNm continuously and reach up to 85% efficiency.
PORTESCAP電機35NT2R82系列技術尺寸圖
PORTESCAP電機35NT2R82系列其他常用型號：
PORTESCAP 35NT2R82-426SP.50
PORTESCAP 35NT2R82-226E.1
PORTESCAP 35NT2R82-426E.1
PORTESCAP 35NT2R82-426P.1
PORTESCAP 35NT2R82-426SP.1
