B-COMMMAND于1995年在德國成立，向客戶提供其知識和創新產品領域，特別是在輸送機和起重技術領域。

B-COMMMAND的主營產品有起重吊墜，接觸器，連接器，無線電遙控器，限位開關，腳踏開關，旋轉集電環和操縱桿等。

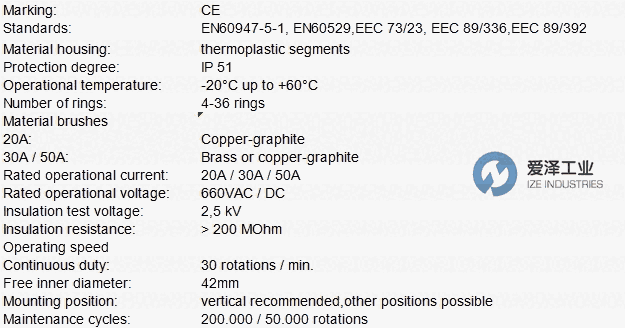

B-COMMMAND旋轉集電環PRP系列技術參數

B-COMMMAND旋轉集電環GPRPB18技術參數

B-COMMAND 旋轉集電環系列 PRP

18個環，每個20A

材料環：黃銅

刷子材質：Cooper Graphit

外殼材料：熱塑性塑料

重量：約5公斤

B-COMMAND Slipring Series PRP

18 Rings, each 20A

Material Rings: Brass

Material Brushes: Cooper Graphit

Material Housing: Thermoplastic

Weight: approx. 5Kg

B-COMMMAND旋轉集電環PRP系列介紹

模塊化設計的旋轉集電環 PRP 可以非常靈活地適應個別客戶的要求。用于環和刷子的各種材料允許為不同的總線系統傳輸高電力、信號和數據。

熱塑性塑料外殼由幾個單獨的部分組成，這些部分可以連接起來以實現模塊化組合。熱塑性材料的選擇特別注重機械完整性和耐溫性。

電纜入口和出口均集成為徑向連接。轉子和定子的分割直接發生在大塊橡膠保護環區域的黃色部分上方。 PRP 的簡單構造允許客戶定義旋轉部分和非旋轉部分，甚至將兩個部分都定義為旋轉部分。

PRP的另一個特點是自由內徑為42mm的中央輸送管。該內管允許不同的介質導管（液體、動力）、驅動軸或鋼絲繩通過。中心管內的所有部件不受周圍旋轉過程的影響。

提供三種不同的模塊尺寸，具有20A、30A和50A的特定額定功率。環和刷子，作為由黃銅或銅石墨制成的標準版本，可以覆蓋有銀色或金色涂層。這導致更高的接觸性能并以積極的方式影響磨損特性。

不同模塊尺寸或不同材質的電刷和環的組合使 PRP 成為緊湊的多功能旋轉集電環，可作為經濟的解決方案用于廣泛的應用。

The modular designed slip ring PRP can be adapted very flexible to individual customer’s requirements. Various materials for rings and brushes allow the transmission of high electrical power, signals and data for different BUS-systems.

The thermoplastic housing consists of several single segments which can be connected for the purpose of modular combination. The thermoplastic materials have been selected with special focus on mechanical integrity and temperature resistance.

The cable entries and exits are integrated both as radial connection. The division of rotator and stator happens directly above the yellow segments in the area of the massive rubber protection ring. The simple construction of PRP allows the customer to define the rotating and non-rotating part, or even to define both parts as rotating.

Another characteristic feature of PRP is the central transfer pipe with a free inner diameter of 42mm. This inner pipe allows the lead through of different media conduit pipes (liquids, power), of drive shafts or steel wire ropes. All parts within the central pipe are not affected by the surrounding rotation process.

Three different module sizes with particular power ratings of 20A, 30A and 50A are available. Rings and brushes, as standardversions made of brass or copper-graphite, can be covered with a silver or gold coating. This leads to a higher contact performance and influences the abrasion characteristics in a positive way.

The combination of different module sizes or different materials of brushes and rings makes PRP to a compact and multifunctional slip ring, which can be used for a big range of applications as an economic solution.

B-COMMMAND旋轉集電環PRP系列其他常用型號：

B-COMMMAND GPRPB12

B-COMMMAND GPRPB15

B-COMMMAND GPRPB18

B-COMMMAND GPRPB21

B-COMMMAND GPRPB24

B-COMMMAND GPRPB27

B-COMMMAND GPRPB30

B-COMMMAND GPRPB33

B-COMMMAND GPRPB36

B-COMMMAND Slip ring NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于B-COMMMAND旋轉集電環GPRPB18的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for B-COMMMAND products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
