AIRTROL壓力真空調節器4104系列選型介紹

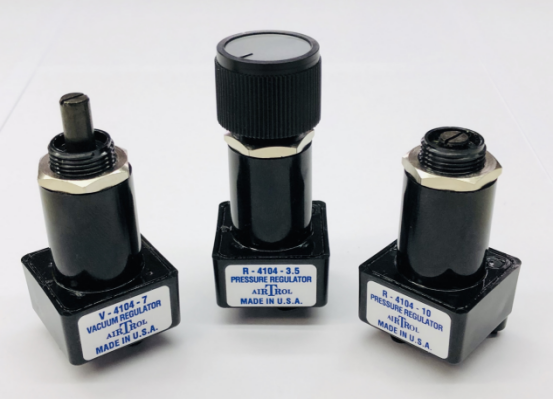

AIRTROL壓力真空調節器4104系列介紹

Airtrol 4104 系列壓力和真空調節器專為需要極低輸出設置和低流量的應用而設計。 可提供低至 1.5 psi 壓力和 3" Hg 真空的滿量程范圍。 兩者都可以輕松保持低至 1" WC 的設置。 兩個裝置還將接受先導輸入，允許對輸出設置進行氣動控制（參見示意圖）。 無滯后調節是通過一個不上升的閥桿進行的，有一個有吸引力的旋鈕，普通的（允許安裝 OEM 旋鈕）或用于“后面板”應用的齊平。



Airtrol 4104 series pressure and vacuum regulators are designed for applications requiring very low output settings and low flow. Full scale ranges as low as 1.5 psi pressure and 3″ Hg vacuum are available. Settings as low as 1″ WC are easily maintained with both. Both units will also accept a pilot input, allowing pneumatic control of the output setting (see schematics). Hysteresis free adjustments are made through a non-rising stem, available with an attractive knob, plain (to allow the installation of OEM knobs) or flush for “back panel” applications.

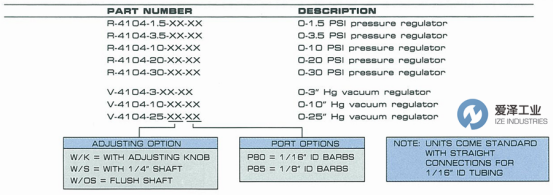

AIRTROL壓力真空調節器4104系列選型

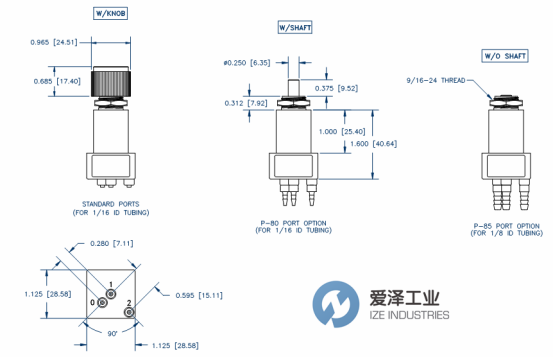

AIRTROL壓力真空調節器4104系列安裝尺寸





AIRTROL壓力真空調節器4104系列其他常用型號：

AIRTROL R-4104-1.5WS

AIRTROL R-4104-1.5WK

AIRTROL R-4104-3.5WS

AIRTROL R-4104-3.5WK

AIRTROL R-4104-10WS

AIRTROL R-4104-10WK

AIRTROL R-4104-20WS

AIRTROL R-4104-20WK

AIRTROL R-4104-30WS

AIRTROL R-4104-30WK

AIRTROL V-4104-3WS

AIRTROL V-4104-3WK

AIRTROL V-4104-10WS

AIRTROL V-4104-10WK

AIRTROL V-4104-25WS

AIRTROL V-4104-25WK
